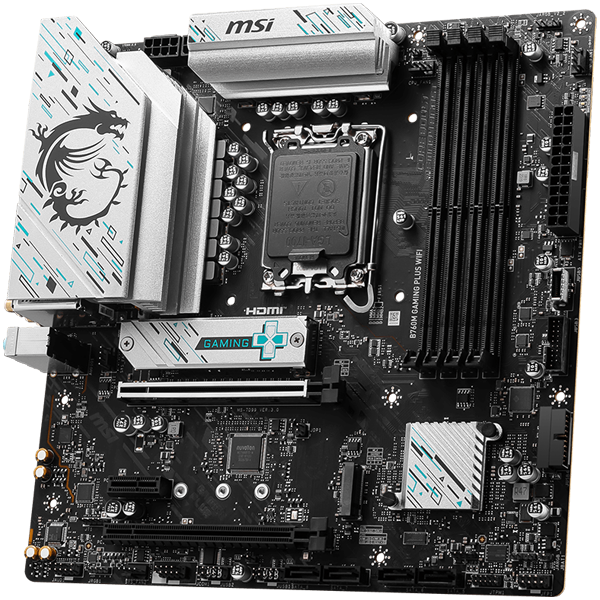

MSI Main Board Desktop B760M GAMING PLUS WIFI, LGA 1700, 4xDDR5, mATX, Dual Channel DDR5 6800(OC)MHz, 2x PCIe x16 slots, 2x M.2 slots, 2x HDMI, 2x USB 3.2 Gen 2x2, 4x USB 3.2 Gen 1, 4x USB 2.0, 7.1 HD
MSI![MSI Main Board Desktop B760M GAMING PLUS WIFI, LGA 1700, 4xDDR5, mATX, Dual Channel DDR5 6800(OC)MHz, 2x PCIe x16 slots, 2x M.2 slots, 2x HDMI, 2x USB 3.2 Gen 2x2, 4x USB 3.2 Gen 1, 4x USB 2.0, 7.1 HD [1]](https://gomagcdn.ro/domains3/yar-tech.ro/files/product/original/msi-main-board-desktop-b760m-gaming-plus-wifi-lga-1700-4xddr5-matx-dual-channel-ddr5-6800-oc-mhz-2x-pcie-x16-slots-2x-m-2-slots-2x-hdmi-2x-usb-3-2-gen-739734.png "MSI Main Board Desktop B760M GAMING PLUS WIFI, LGA 1700, 4xDDR5, mATX, Dual Channel DDR5 6800(OC)MHz, 2x PCIe x16 slots, 2x M.2 slots, 2x HDMI, 2x USB 3.2 Gen 2x2, 4x USB 3.2 Gen 1, 4x USB 2.0, 7.1 HD [1]")
Durata de livrare: 1-2 zile lucrătoare
- Descriere
- Caracteristici
- Review-uri (0)
| Procesor | |
| Set de cipuri: | Intel B760 |
| Prevazut cu CPU: | Intel 12th Gen Processors Intel 13th Gen Processors Intel 14th Gen Processors |
| Standard soclu procesor (CPU): | Socket 1700 |
| Cantitate maximă de CPU suportată: | 1 |
| Main Board Desktop - Memory | |
| Tipul de memorie: | DDR5 SDRAM |
| Factorul de formă al memoriei: | DIMM cu 288 de pini |
| Viteza memoriei: | 5600MHz(PC5-44800) |
| Capacitate maximă de stocare a memoriei de sistem instalabile: | 192 GB |
| Cantitatea totală a sloturilor de memorie: | 4 |
| Furnizează metoda de verificare a erorilor: | non-ECC |
| Caracteristici memorie: | Two DDR Channels Unbuffered XMP 3.0 |
| Controller | |
| Integrat: | Storage Controller: PCIe NVMe 4.0 x4 (1 x M.2) Storage Controller: PCIe 4.0 x4/SATA (1 x M.2) Storage Controller: Supports: Level 0, Level 1, Level 10, Level 5 SATA III-600 (4) |
| Plug-in-card: | Wi-Fi Controller: 1 x M.2 (Key E) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | Da |
| Locația dispozitivului: | Integrat |
| Audio Chipset: | Realtek ALC897 |
| Modul de redare audio: | 7.1 Channel Surround |
| Standarde audio conforme: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | Da |
| LAN Chipset: | Realtek RTL8125BG |
| Wi-Fi: | IEEE 802.11ax Wi-Fi 6E |
| Bluetooth: | Bluetooth 5.3 |
| Protocolul de legătură de date suportate: | 2.5 Gbps |
| Slot | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 1 |
| PCI Express 4.0 x4: | 1 |
| Interfață furnizată | |
| PS/2: | 1 |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| DisplayPort: | 2 |
| HDMI: | 2 (HDMI (Tip A)) |
| USB 3.2 Gen 1: | 2 (USB 3.2 (type A)) |
| USB 3.2 Gen 2: | 2 (USB 3.2 (type A)) |
| Antenă: | 2 |
| LAN: | 1 (RJ-45) |
| Interfață audio: | 1 (Minijack de 3,5 mm) |
| Main Board Desktop - Software | |
| Sistem de operare suportat: | Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Diverse | |
| Cablu inclus: | SATA Cable |
| Accesorii incluse: | I/O Shield Scurt Ghid de utilizare Screws WiFi antenna |
| Main Board Desktop - Dimensions&Weight | |
| Factorul de formă: | Micro ATX |
| Înălțime (mm): | 243.84 mm |
| Lățime (mm): | 243.84 mm |
Specificatii:
Intel 13th Gen Processors
Intel 14th Gen Processors
Unbuffered
XMP 3.0
PCIe NVMe 4.0 x4 (1 x M.2)
Storage Controller:
PCIe 4.0 x4/SATA (1 x M.2)
Storage Controller:
Supports: Level 0, Level 1, Level 10, Level 5
SATA III-600 (4)
1 x M.2 (Key E)
Microsoft Windows 11 64-bit
Scurt Ghid de utilizare
Șuruburi
WiFi antenna
